Geberit BIM Plug-in

Plug-in and Plan

Intelligent data and tools for digital planning

To support MEP design and planning, Geberit offers manufacturer-specific BIM content in addition to conventional CAD data and intelligent tools. The Geberit BIM content consist of parametric 3D models that contain article-specific meta information. This facilitates MEP design and planning with Geberit products in the Autodesk® Revit® planning software from early stages of design to facility management

New Geberit BIM plug-in

The new version of the Geberit BIM plug-in combines all Geberit BIM tools in a central application. In addition to a newly designed user interface, the Geberit BIM plug-in also offers many new and helpful functions that simplify the planning process significantly.

Geberit BIM-Daten für Autodesk® Revit®

New features

  • Catalogue: Access to up-to-date BIM objects

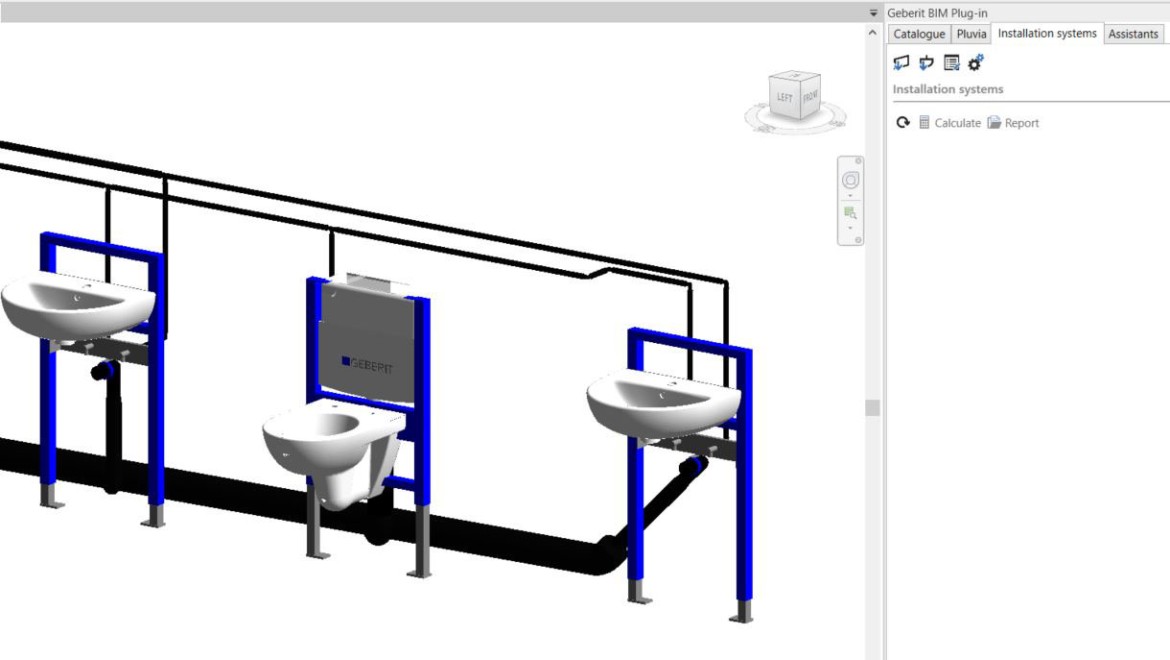

  • Installation systems: Geberit GIS prewall calculation directly in Autodesk® Revit®

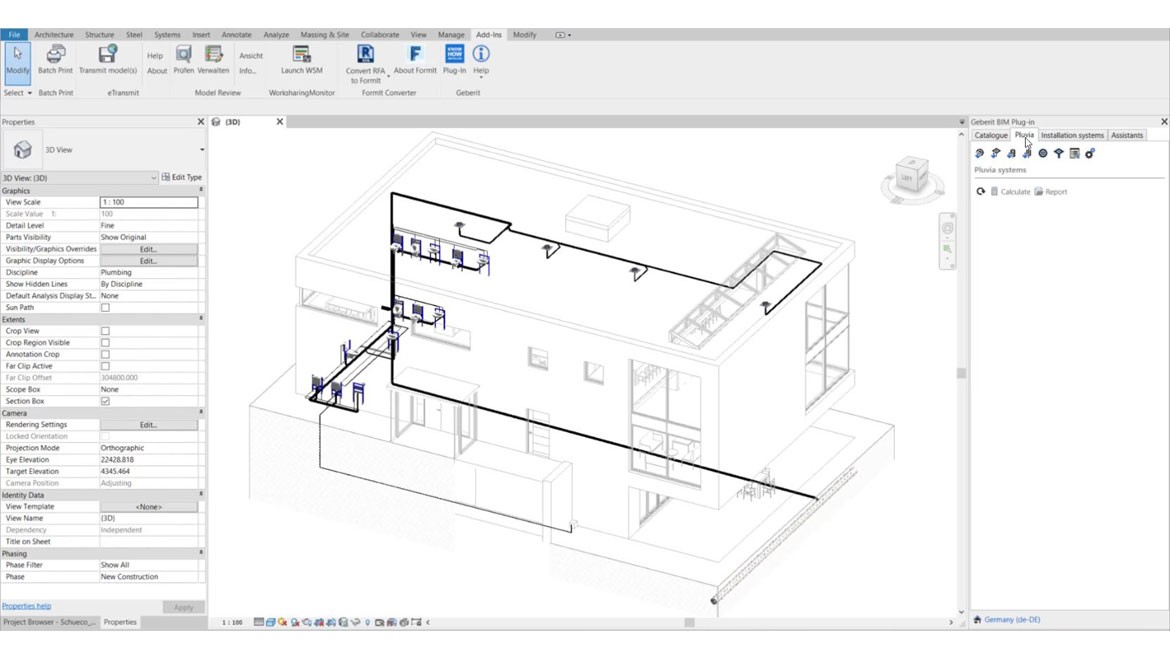

  • Geberit Pluvia: Calculation directly in Autodesk® Revit®
  • Search for products using the Geberit article number
  • Direct link to the Geberit online catalogue
  • Assistant:

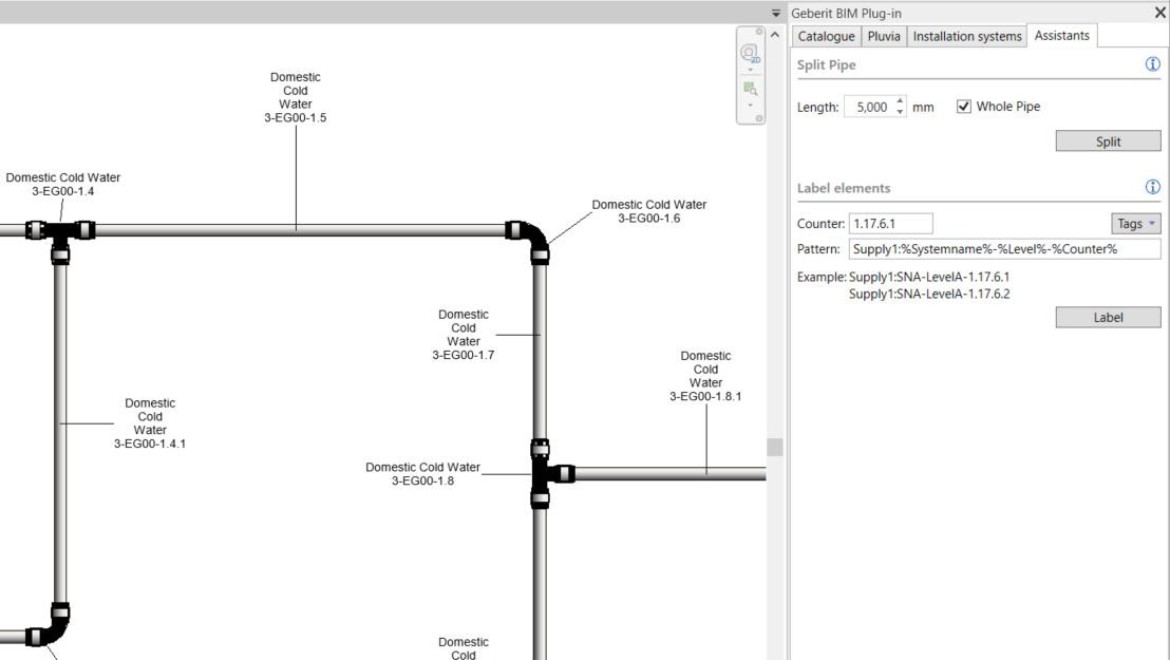

    • Pipe numbering for prefabrication
    • Length segmentation command for pipe segmentation

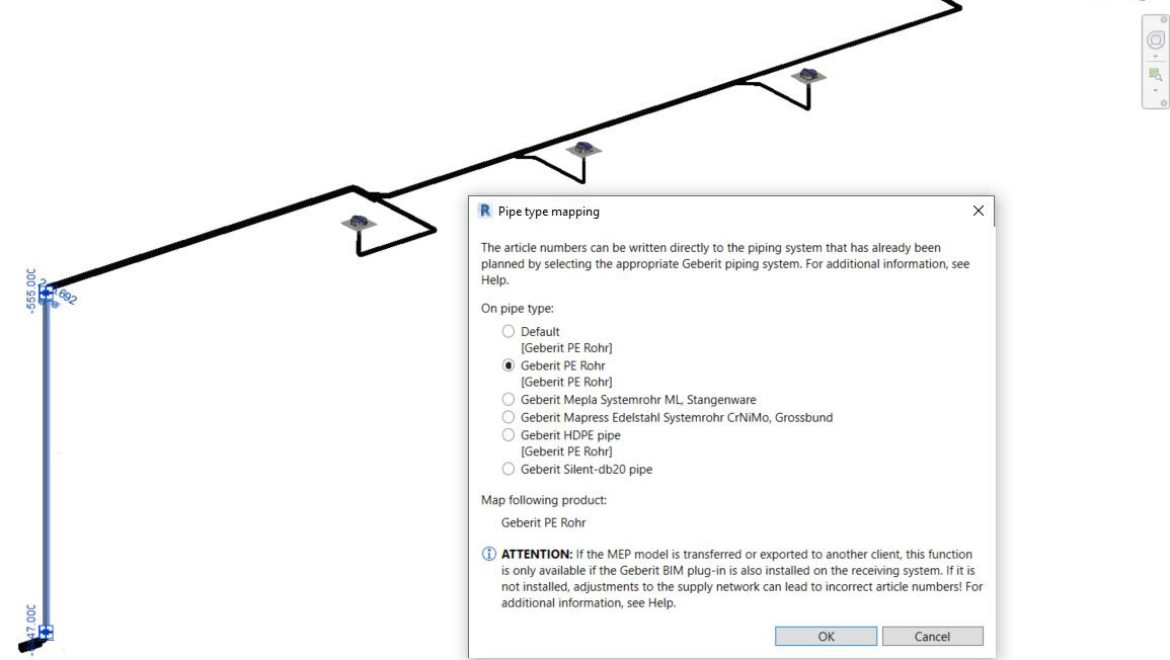

    • Assigning article numbers to system pipes

Geberit BIM plug-in at a glance

Catalogue module

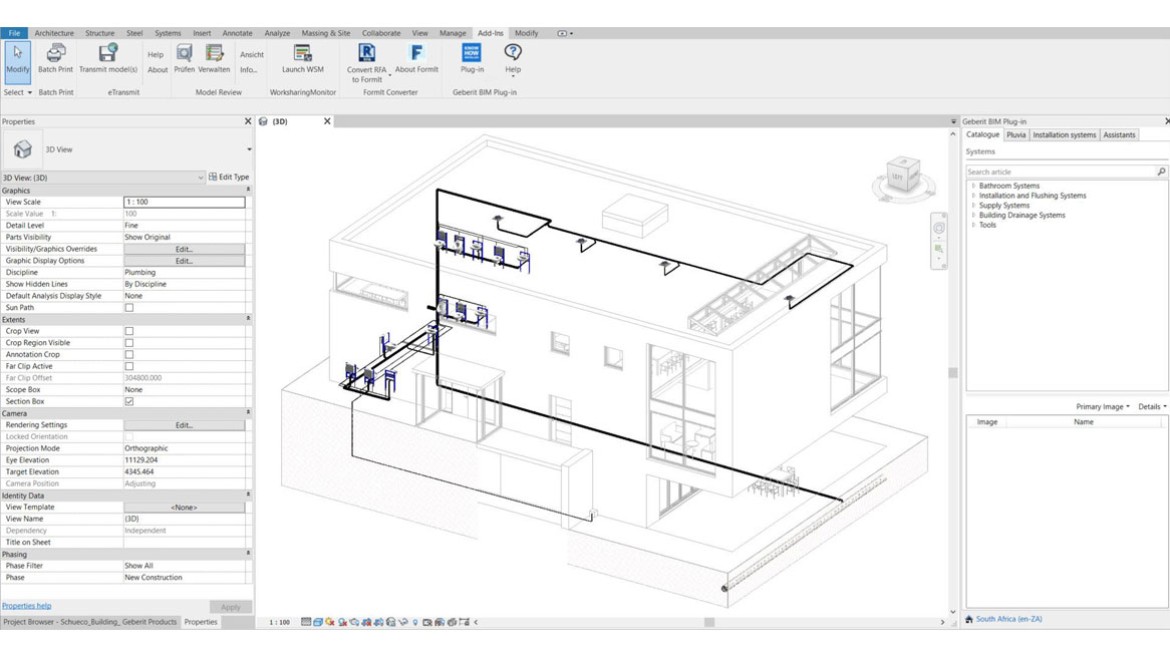

Product structure in the Catalogue module in Autodesk® Revit®

The Catalogue module gives you direct access to up-to-date content for all Geberit products, country and language specific.

Benefits at a glance:

  • Access up-to-date BIM objects for Geberit products at any time and from any location.
    New: Now also available for Geberit GIS and Geberit Kombifix installation elements as well as Geberit ceramic appliances and bathroom furniture.
  • New: Find products faster by typing directly the Geberit article number.
  • New: Access more information about the product by linking directly to the Geberit online catalogue.
  • Autodesk® Revit® families at product level
  • Parametric models of a small file size that can be used efficiently. Ideal for larger projects where large files can negatively impact software and computer performance.
  • No need to translate standard English texts any more, as Geberit BIM objects are available in 25 national languages. Can be switched over to a generic at the touch of a button – important when dealing with tenders for public projects!
  • Available for the 2023, 2022 und 2021 versions of Autodesk® Revit®.

The future happens every day – BIM NOW

Download

Please click here to register and access the download, updates and more information
