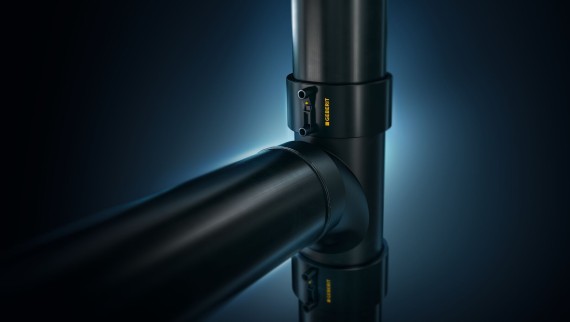

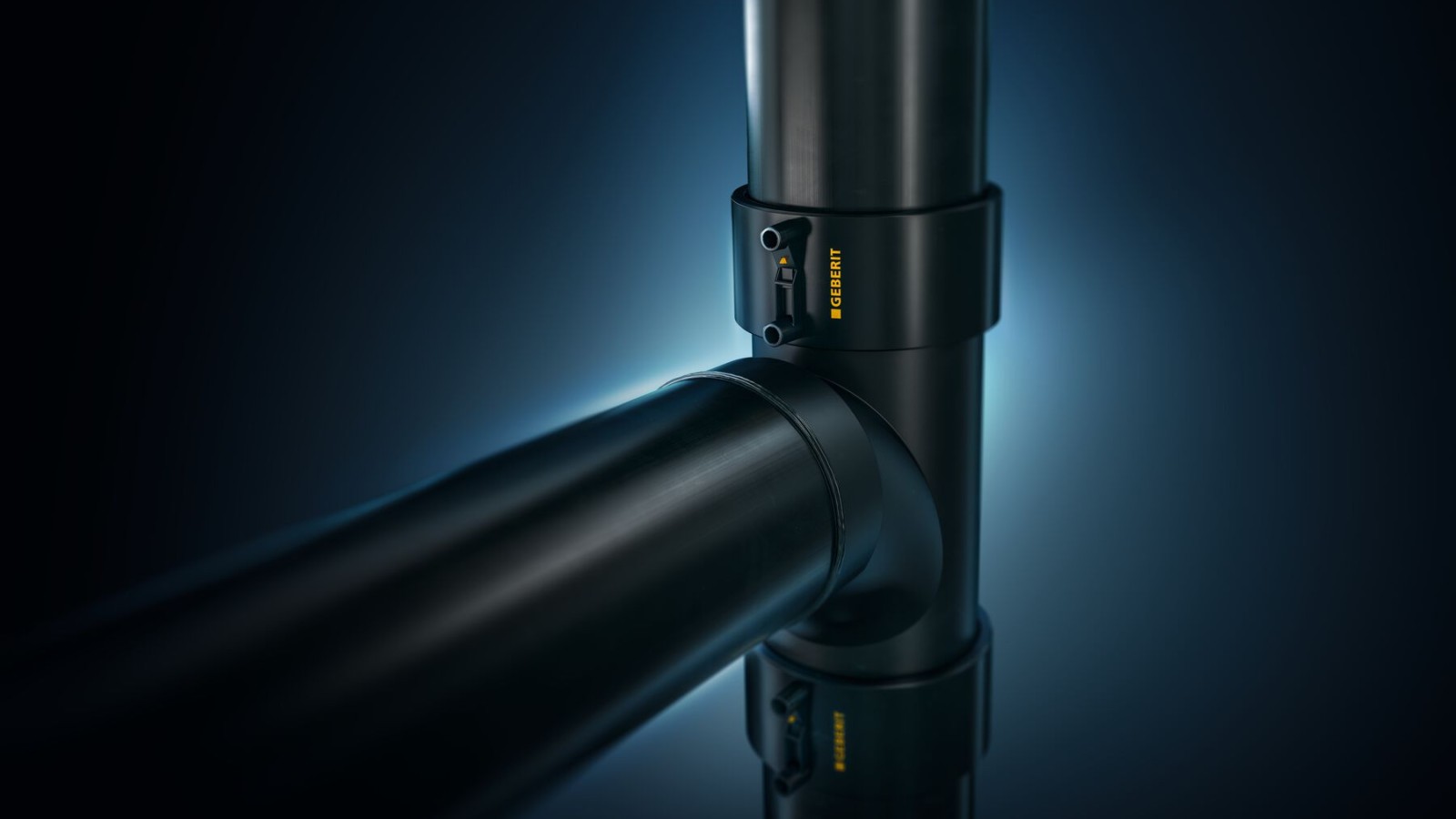

Geberit HDPE Robust resistance no matter what
The professionals for the dirty work

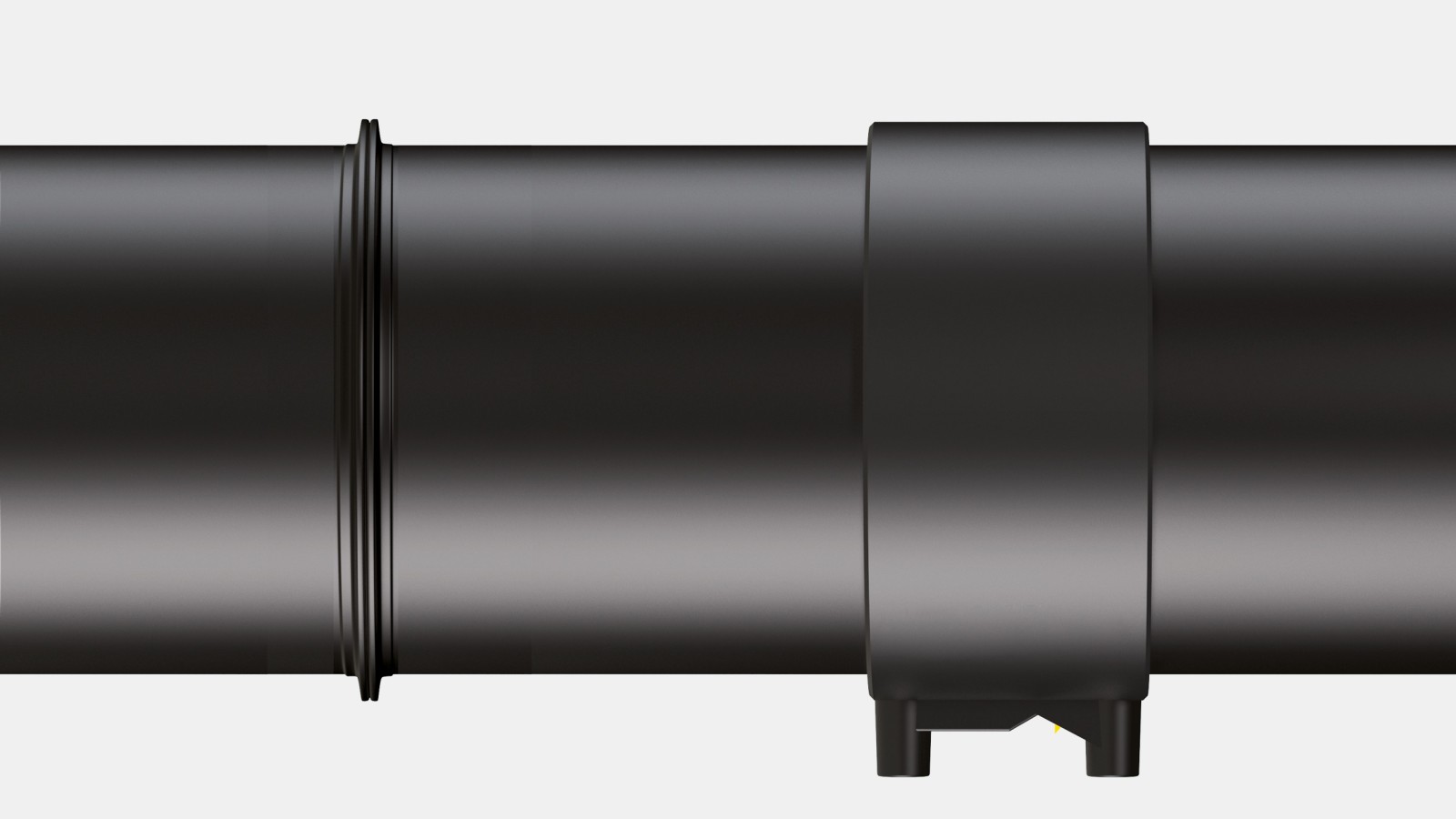

Geberit PE discharge pipes are suitable for a multitude of application ranges in building drainage, roof drainage, in industry, in commercial or laboratory facilities, for placement in the ground, in concrete or in bridge construction.
- Resistant to around 95% of all standard alkalis, acids and chemicals.
- The pipes and fittings withstand shocks, drops, impacts or short-term pressure without breakage or permanent deformation
Geberit PE applications
- Building drainage
- Conventional roof drainage system
- Syphonic roof drainage system
- Land drainage system

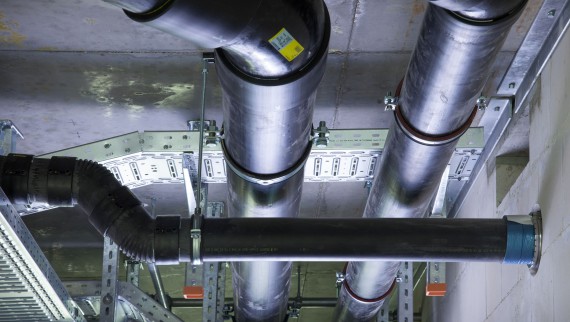

- Industry

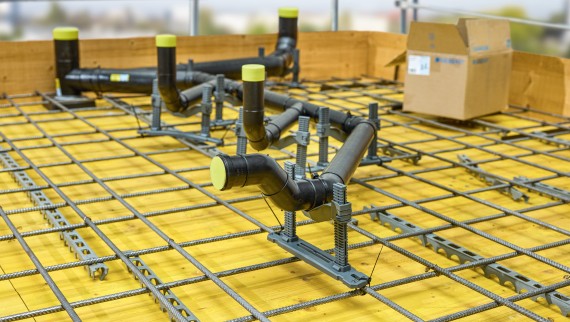

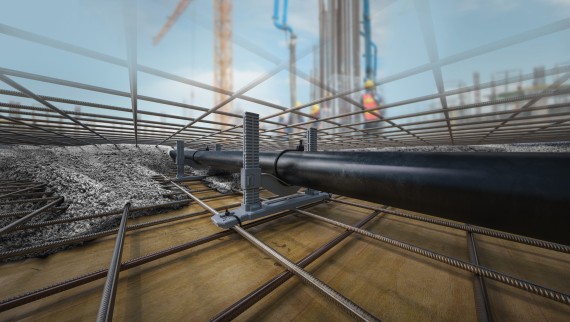

Geberit PE is suitable for embedding in concrete.
Many good reasons for Geberit PE
Please select an info point in the picture
Geberit PE assortment
Dimensions

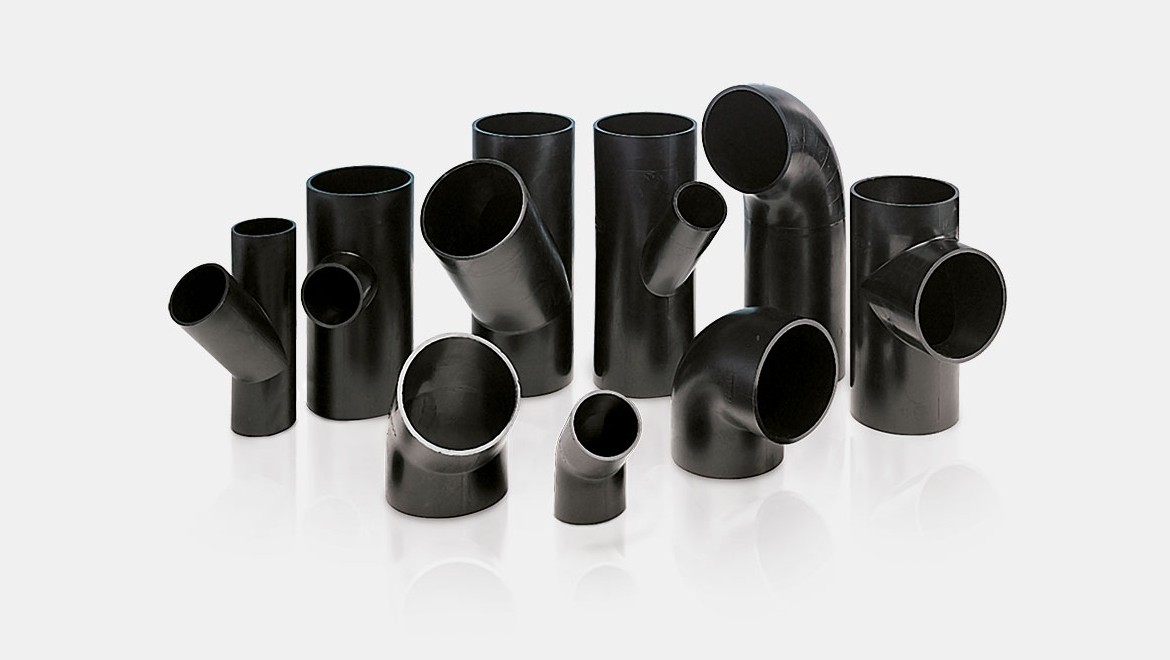

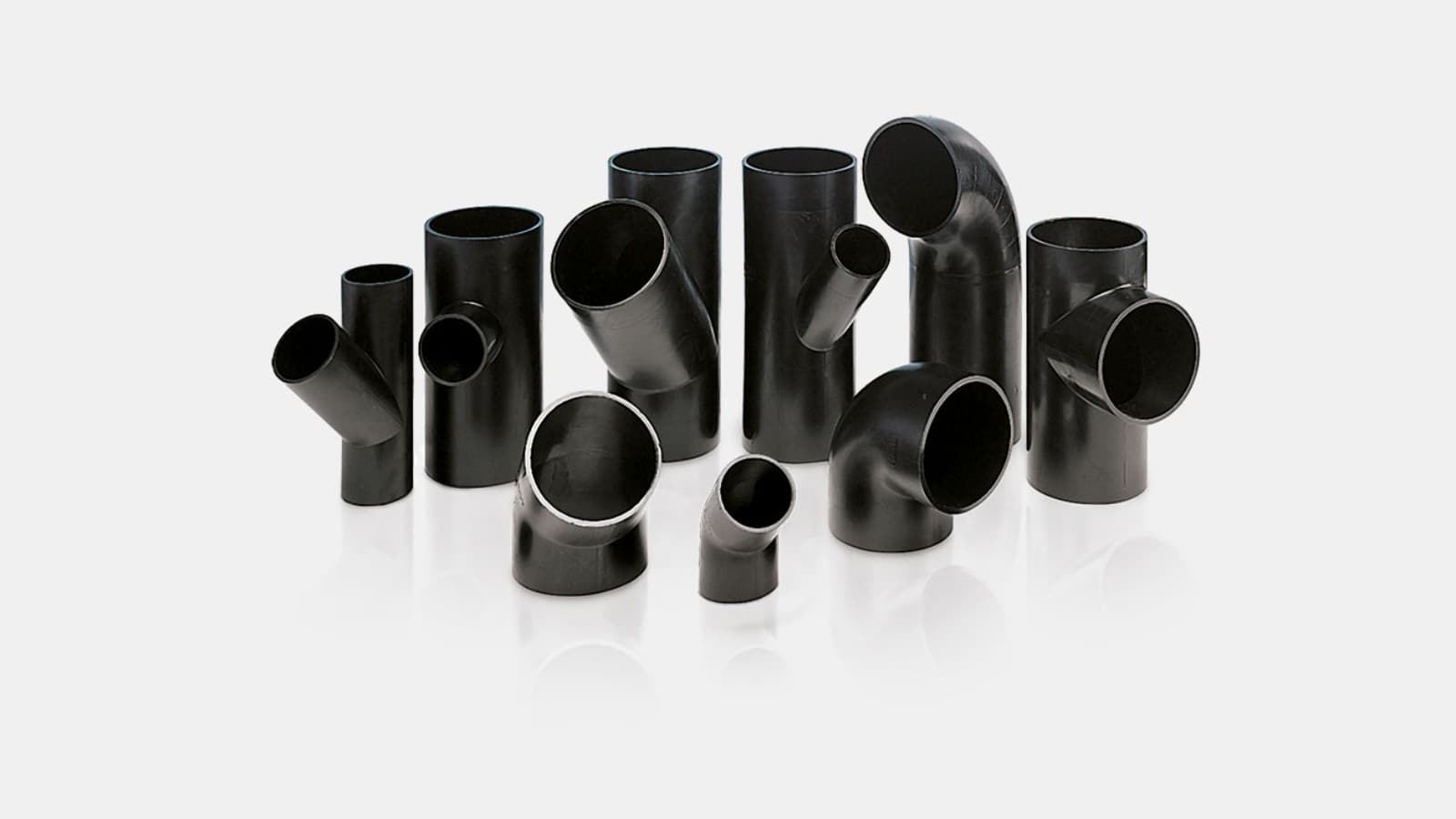

Fittings

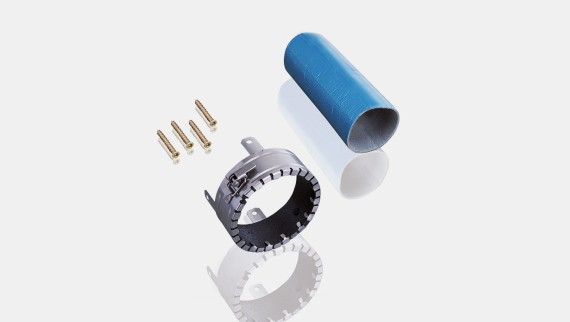

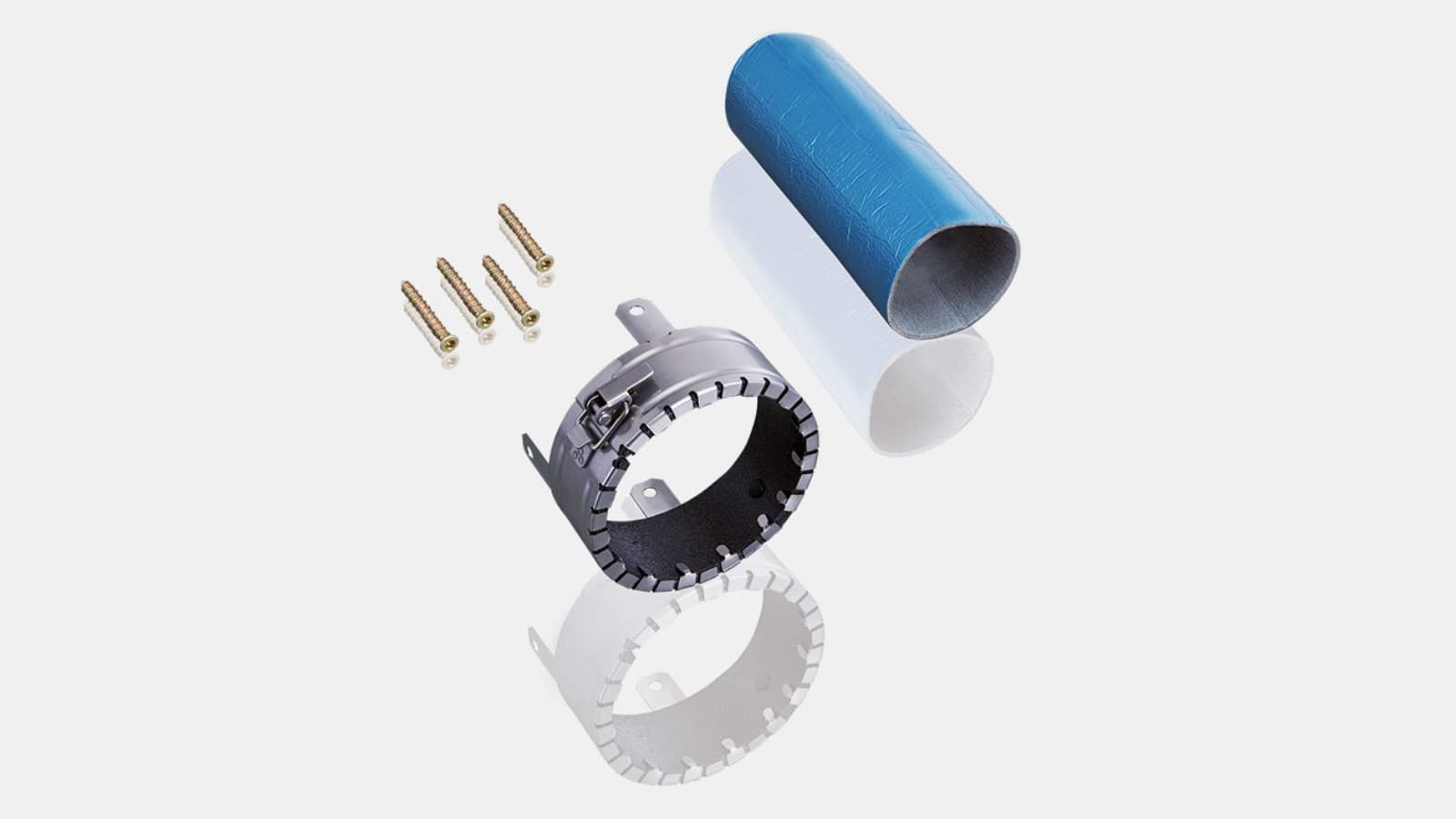

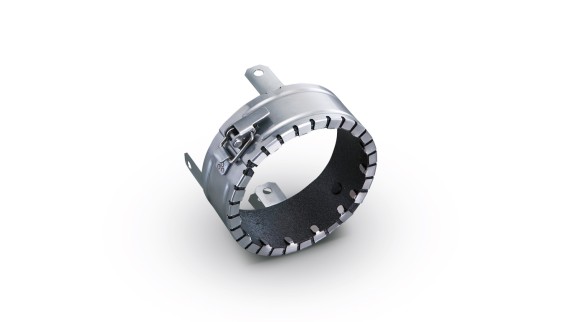

Accessories
Technical data
Dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 30 | 32 x 3 |
| 40 | 40 x 3 |
| 50 | 50 x 3 |
| 56 | 56 x 3 |
| 60 | 63 x 3 |
| 70 | 75 x 3 |
| 90 | 90 x 3.5 |
| 100 | 110 x 4.3 |
| 125 | 125 x 4.9 |
| 150 | 160 x 6.2 |
| 200 | 200 x 6.2 |
| 200 | 200 x 7.7 |
| 250 | 250 x 7.8 |
| 250 | 250 x 9.7 |
| 300 | 315 x 9.8 |
| 300 | 315 x 12.2 |
